Introduction

In this tutorial I will show you how to create a build-up animation. The animation will be basic, but the methods can be extrapolated to add more complexity. I will be using 3ds max 8 (the recommended software for BFME modeling) in this tutorial.

STEP 1: Setting up your model

To create a minimal amount of interesting animation, I seperate my structure into a bunch of objects.







If you don't know how to seperate your model, I suggest following some of the other basic modeling tutorials available on this website.

STEP 2: Setting up the animation parameters

At the bottom right of your screen, you will see a small button (as indicated in the screenshot below). Pressing it will open the Time Configuration window.
For a smooth animation in BFME, I suggest setting the length to 1000 frames. That means the animation will have a 1000 frames to play in full, preventing choppiness.



Press OK.

STEP 3: Animating your model

First, move your model down so it sits below the ground grid in 3ds max. Your model will move up through the ground ingame, so you can't have bits sticking out.



Press N. This will activate animation mode (no, I don't know the proper term). We will now start animating the model.

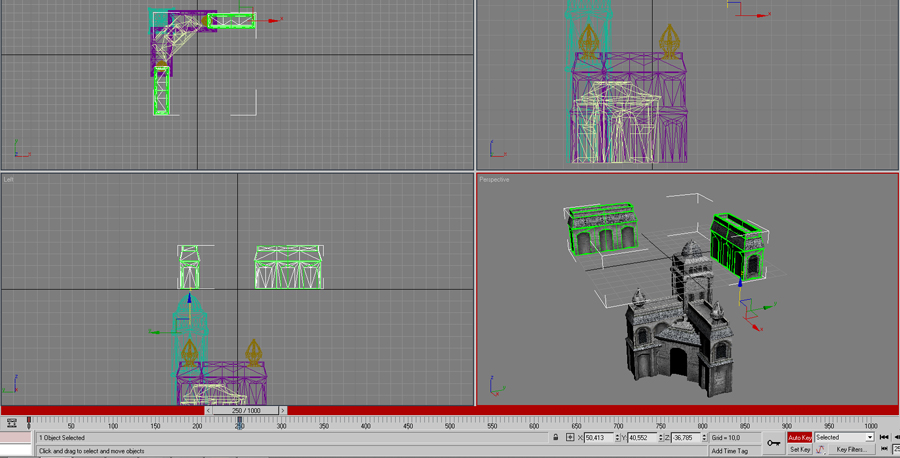

Select the first piece of your model that you want to build up. Move it to right below the grid, then drag to a frame on the animation timeline (the bar that lit up red when you pressed N). For my first piece, I selected frame 250. Now move your piece up above the frame to where you want it to be.



You will notice the creation of two so-called 'keys', the small red squares on the animation timeline. These represent the start and end of a given object's animation. My object started at 0 and ended at frame 250. You can move the animation bar back to 0 and press the play button in the lower right of the screen to preview the animation.

Set the timeline to your latest used key (250, in my case), then select the second object you wish to animate. Move it to just below the grid, set then set the animation timeline to a later frame, 500 in my case. This will make sure the second object only starts animating once the first is done.



Repeat this for every other object. You can play it back to make sure everything moves as you intended it to.



STEP 4: Exporting your model

To use your animation ingame, you will need to export it using the correct W3D settings. Press the Utilities tab (the little hammer on the right side of the screen), click More, find W3D Tool, and click OK. These are the proper settings for animated structures:



Now you can export your model. Export to W3D, and use these options in the Export Options screen:



Afterwards, test it in W3D Viewer to make sure it works:



And that should be it. After a couple of tries you'll get more comfortable creating keys, after which you'll be able to add onto this simple method with more complex animations (walls turning upwards using the Select and Rotate gizmo, wooden beams and pillars to show construction in progress, etc). If you have any questions regarding this tutorial, please refer to our forums where I will be glad to answer them.
