Register and log in to move these advertisements down Animating with use of Inverse Kinematics

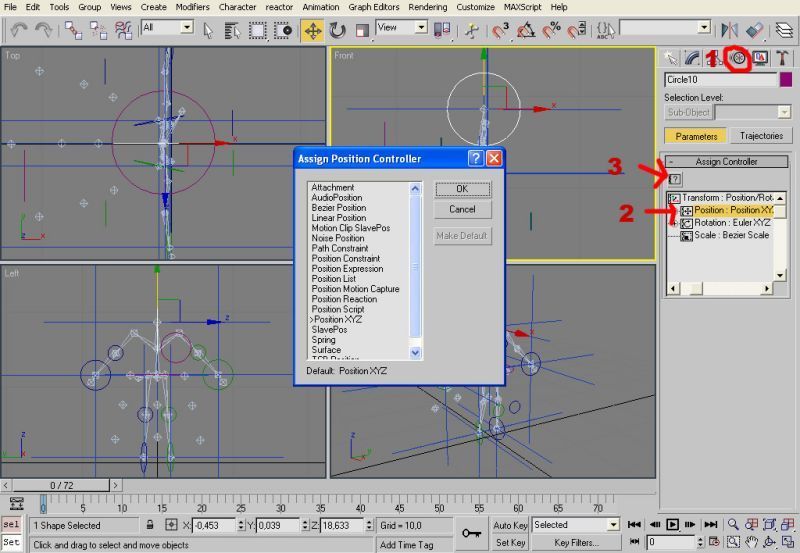

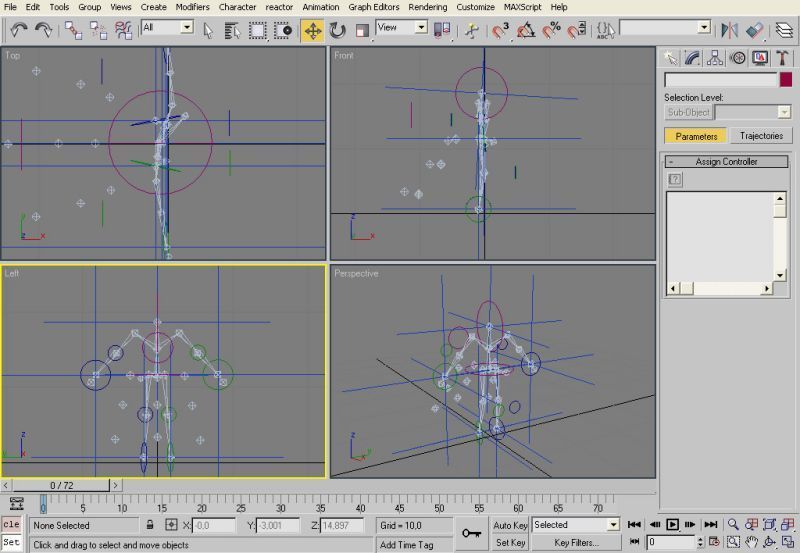

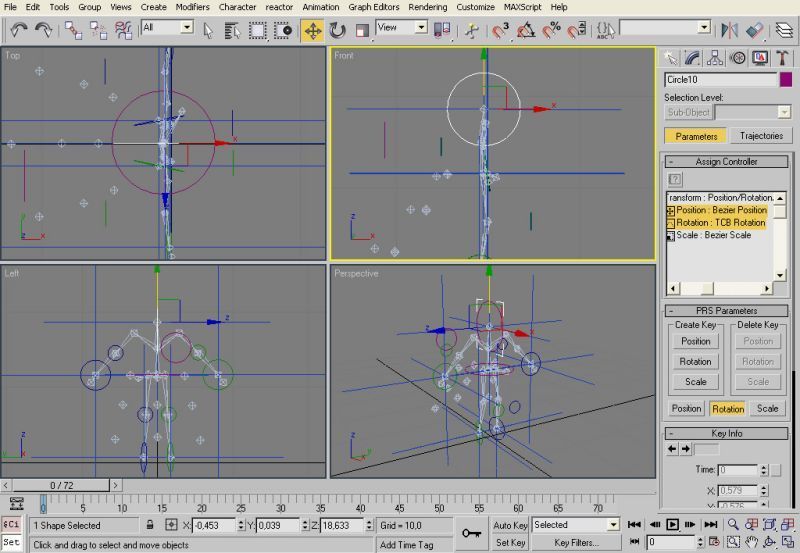

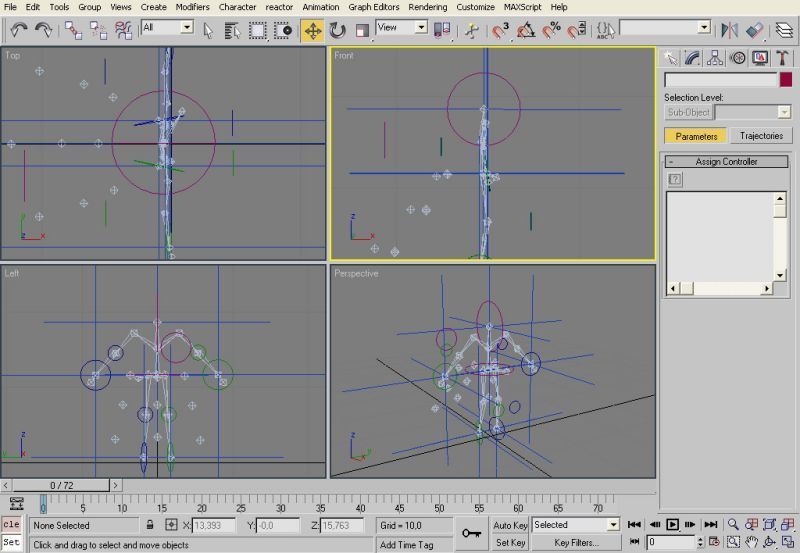

Unhide the IK solvers and we start linking them to those circles. Normaly use max's link button to do that. Link each IK solver to the circle that it belongs to with that you can use those circles to move the IK and the whole arm with it. Allso link Root bone to that big circle that is near to it. Then set up Orientation constrait for hand, foot and head bone to those circles. This means that if you rotate that circle the bone that use OC to it will rotate with it.I almost forget to link those small circles at knees and elbows to the IK solvers as Swivel Angle, but you saw that in that video tutorial so you should know how to do that.  You may notice the shoulder move out of way sligtly, we will solve that with moving the violet circle that control torso's Swivel angle sligtly to the left. i also rotate the head controler a bit to fix a small error that occur during the process.  To avoid robotic moves and other weird stuff we need to set controller point's Position Controller sliglty differently then default. Select the head's circle and click on the icons in the order that numbers show you and set position controller to Bezier Position and rotation controller to TCB rotation.   Repeat that step for all the other circles. When finished hide all IK solvers and circles. Before that you can check that their export setting is set to nothing. Basicly cause we dont want to export those :P  After that create wwskin and rigg ( bind ) the model to the skeleton as usuall.  Save you max file and open completly new one. Links / Downloads
